Top Common Issues with Cummins ISX Engines and How to Fix Them

Cummins ISX engines are powerful but may face issues like EGR valve failure, turbocharger problems, fuel injector malfunctions, DPF clogging, camshaft wear, and excessive oil consumption. Regular maintenance and timely fixes can prevent costly repairs and extend engine life.

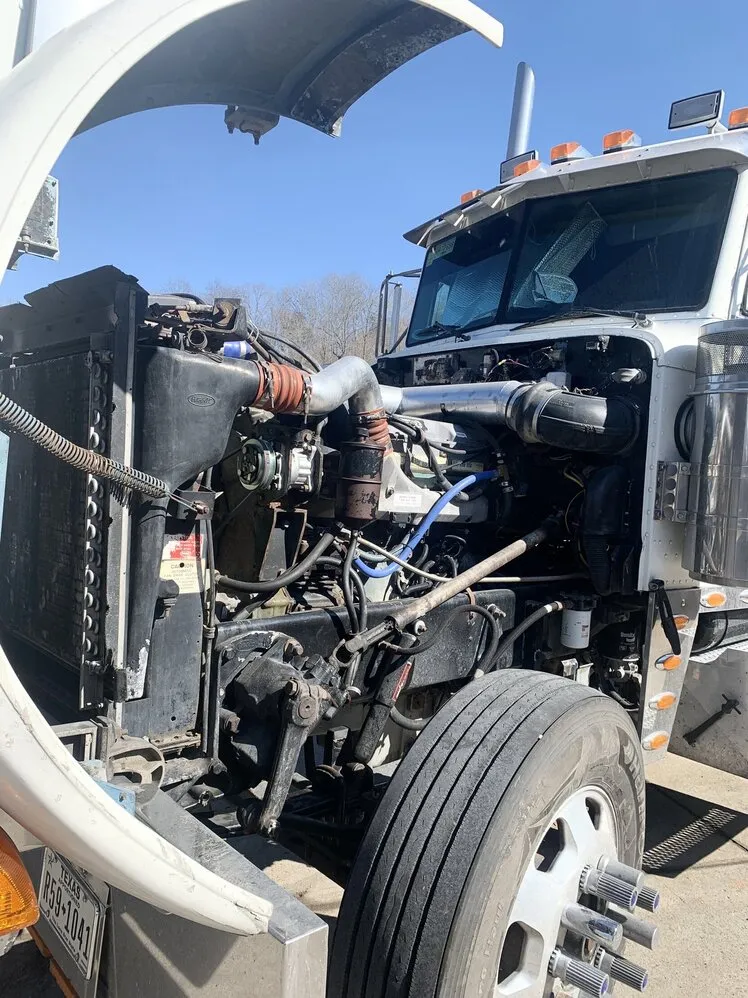

diesel truck Cummins ISX engine repair
Diesel engine

Cummins ISX engines are known for their reliability and power. However, like all complex machines, they can experience issues over time. Understanding the common problems with Cummins ISX engines can help prevent unexpected breakdowns, improve longevity, and keep your truck running at peak performance. Below, we’ll explore the top problems and, more importantly, how to fix them.

EGR Valve and Cooler Failure

One of the most notorious issues with Cummins ISX engines is the EGR (Exhaust Gas Recirculation) valve and cooler failure. The EGR system helps reduce NOx emissions by recirculating exhaust gases back into the combustion chamber, lowering temperatures. Unfortunately, these components can fail due to excessive soot buildup, which can block passages and cause overheating.

Symptoms

  • Check Engine Light (CEL) illuminates
  • Loss of power and fuel efficiency
  • Black smoke from the exhaust

Fix:

To address EGR problems, the EGR valve and cooler must be regularly cleaned or replaced if necessary. Sometimes, a forced regeneration might be needed to clear soot buildup. Coolant levels should also be inspected regularly, as EGR cooler leaks can cause coolant loss. If failure persists, replacement of the EGR valve or cooler is often necessary.

Turbocharger Issues

The turbocharger on Cummins ISX engines is another component that is prone to failure. Given its role in forcing air into the combustion chamber, it’s constantly exposed to high pressures and temperatures. Over time, turbo lag, excessive boost pressure, or complete turbo failure can occur due to wear and tear.

Symptoms

  • Whining or grinding noises from the turbo
  • Reduced engine performance, particularly during acceleration
  • Excessive exhaust smoke

Fix

Routine inspections are critical. Check for oil leaks around the turbo, as oil starvation or contamination is a common culprit behind failures. Depending on the severity of the damage, replacing the turbo's seals and gaskets, or even the entire unit, might be necessary. To prevent future issues, keep up with regular oil changes and use high-quality engine oil.

Fuel Injector Problems

Cummins ISX engines are also susceptible to fuel injector issues. Fuel injector malfunction can cause poor fuel atomization, leading to rough idling, increased fuel consumption, and even engine misfires.

Symptoms

  • Rough idling or misfires
  • Poor fuel economy
  • Engine knocking noises

Fix

To resolve fuel injector problems, perform a diagnostic test to identify the faulty injector(s). Replacing defective injectors is the most effective fix. Additionally, using fuel additives that clean and lubricate the injectors can help prevent future clogs. Routine filter replacements are also essential for keeping fuel injectors in good condition.

DPF Clogging and Regeneration Issues

The diesel particulate filter (DPF) is a crucial part of the exhaust aftertreatment system designed to trap soot and other particulate matter. The DPF can become clogged, especially if regeneration cycles (burning off the accumulated soot) are interrupted. This leads to increased back pressure, reduced engine performance, and even complete engine shutdown.

Symptoms

  • Frequent regenerations
  • Decreased engine power
  • Check Engine Light related to emissions

Fix

A forced regeneration can help clear the soot buildup in a clogged DPF. If the DPF is severely clogged, removing and cleaning the filter or replacing it altogether might be necessary. Keeping an eye on DPF sensor readings and ensuring proper operation of the regeneration cycle will help avoid future issues.

Camshaft Wear

Camshaft wear is a common issue in older or high-mileage Cummins ISX engines. The camshaft controls the timing of the engine's intake and exhaust valves, and if it becomes worn, it can cause valve timing issues or even valve damage.

Symptoms

  • Ticking or knocking sounds from the top of the engine
  • Poor engine performance
  • Check Engine Light indicating valve timing issues

Fix

If camshaft wear is detected, the only solution is to replace the camshaft and related components like lifters and pushrods. To prevent this issue, follow a regular oil change schedule, as clean oil reduces friction and wear on these components.

Oil Consumption

Many Cummins ISX owners report excessive oil consumption as the age of their engine. This can be caused by several factors, including piston ring wear, valve guide wear, or even turbocharger issues. Excessive oil consumption can lead to engine overheating and premature failure if left unchecked.

Symptoms

  • Low oil levels between oil changes
  • Blue or white smoke from the exhaust
  • Oil fouling in the intercooler

Fix

To reduce oil consumption, inspect piston rings and valve guides for wear. Replacing worn components can restore oil control and prevent further consumption. Keeping the turbocharger in good condition is also crucial, as oil leaks within the turbo can contribute to this issue.

Conclusion

Keeping your Cummins ISX engine running smoothly involves regular inspections, proper maintenance, and swift action when issues arise. By addressing EGR problems, turbocharger failures, fuel injector clogs, DPF clogging, camshaft wear, and oil consumption early, you can ensure a longer engine life and avoid costly repairs down the road.

If you’re experiencing any of these issues, it's best to have your engine inspected and serviced by a qualified technician specializing in Cummins ISX engines. Red Lightning Field Service in Largo, FL, is equipped to handle all your diesel repair needs, ensuring your rig stays on the road and out of the shop.
